Data Collection & Distribution

User Manual — Embedded Channel

D.6 Embedded Channel

6.1 How to Create an Embedded Channel

Use the Embedded Channel to integrate a SurveyHub survey directly into your website. This allows you to embed a survey directly within your platform, allowing respondents to take the survey in your website instead of being redirected to an external URL. The steps to creating a new Embedded Channel are as follows:

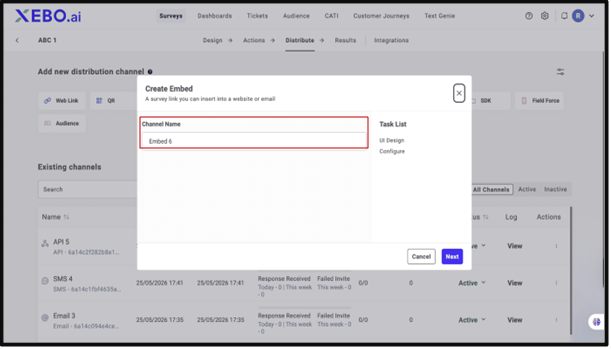

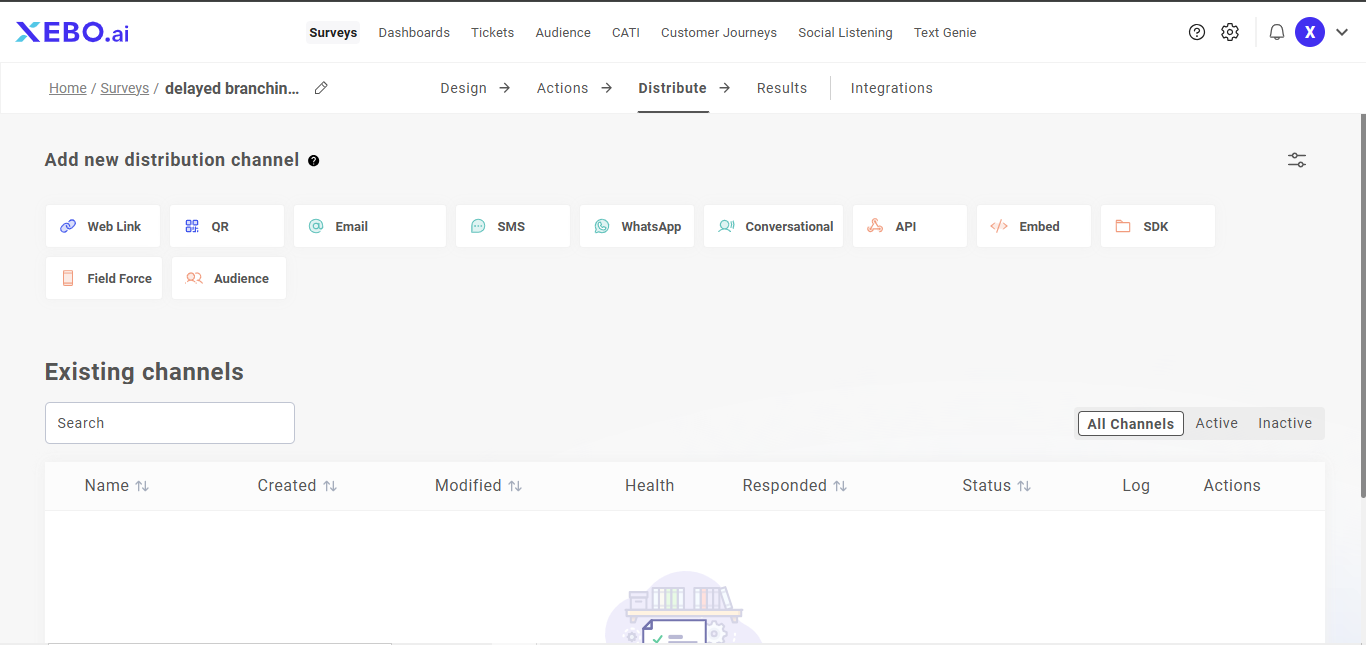

1. On the Distribute tab, click Embed Channel.

2. Enter Channel Name and click Next.

You can customize various Channel Setting by accessing the settings option on the right side of the screen.

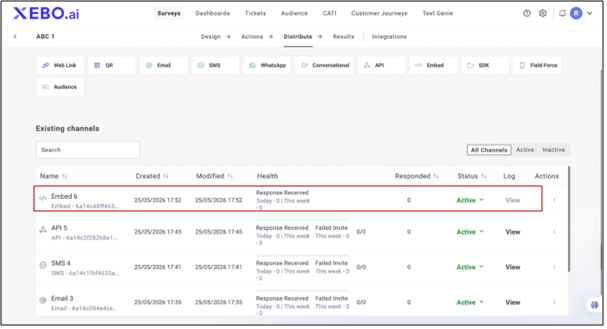

1. Select an existing Embed Channel.

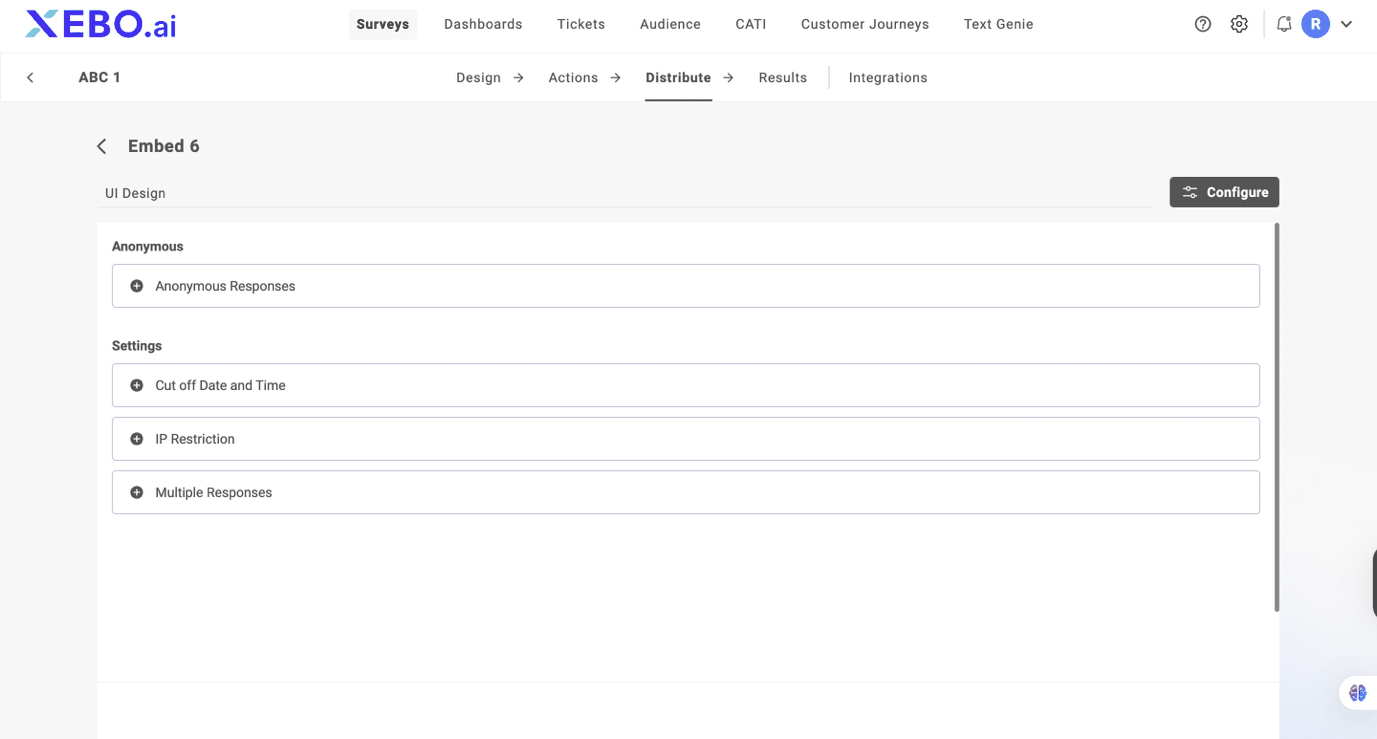

2. Click Configure to view and customize channel settings.

The available customizable options are:

Anonymous Responses: Choose to exclude all respondent information, exclude only personal information, or include all information in the survey results.

Cutoff Date and Time: Define until when responses will be accepted. If left Off, responses will be accepted until you manually close the Channel.

IP Restriction: Allow surveys to be taken or blocked from specified IP addresses.

Multiple Responses: Decide how many times and how often a respondent can complete the survey.

6.3 How to Customize Embedded Channel

The Embedded Channel lets you choose the survey type that best suits your platform. Choose from a popup, standard, or full page. Copy the embedded code for the Survey size you find the best for your brand and business.

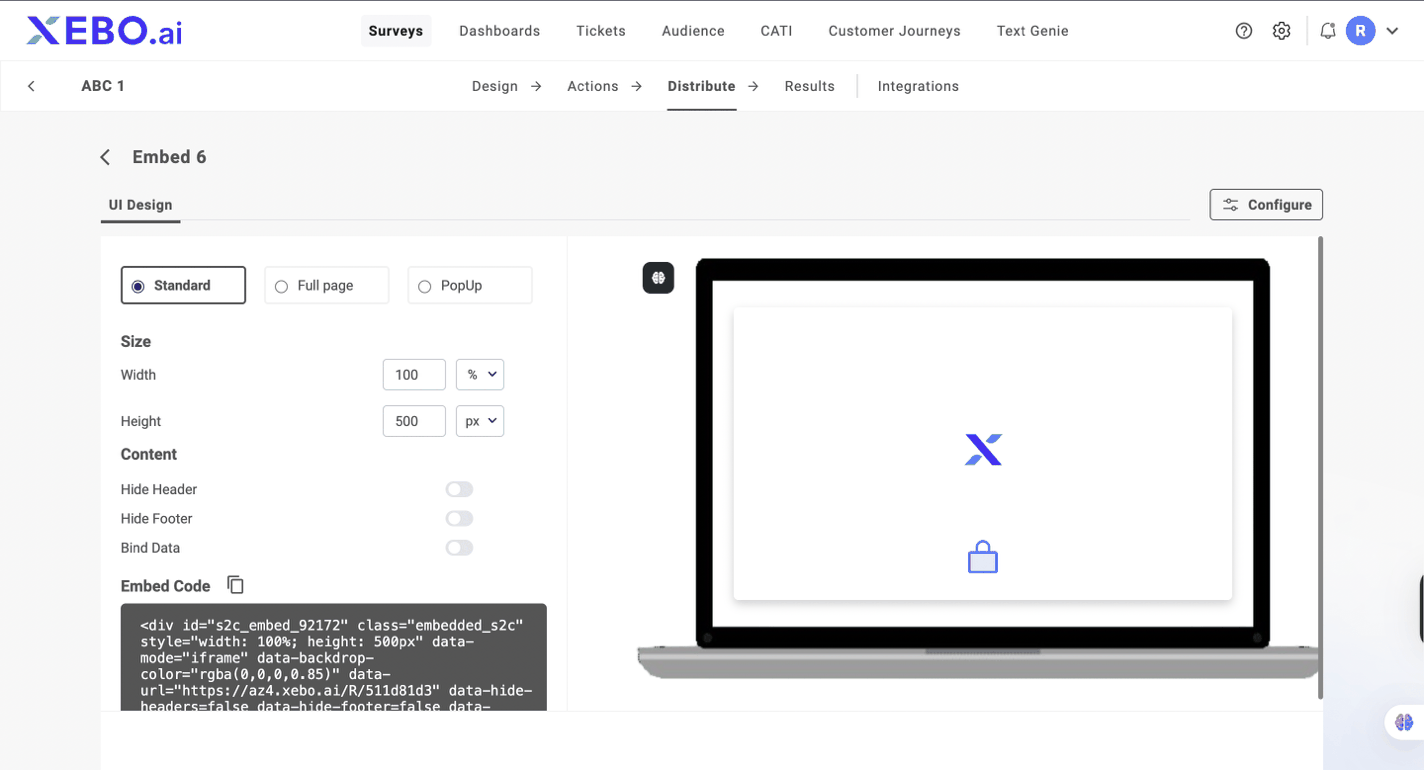

Standard

This is the standard template offered by SurveyHub. You can integrate this into your website/platform. There are some customizable parameters for you to make changes to:

Width: You can change the width of the survey box by altering it.

Height: You can change the height of the survey box by altering it.

Hide Header: This option hides the header of the survey, showing you just questions.

Bind Data: Bind embedded data into survey response.

Hide Footer: This option hides the footer box at the bottom.

Embed Code: This is the code which allows you to integrate the survey with your platform. Copy it and paste it on your website’s source code to integrate it.

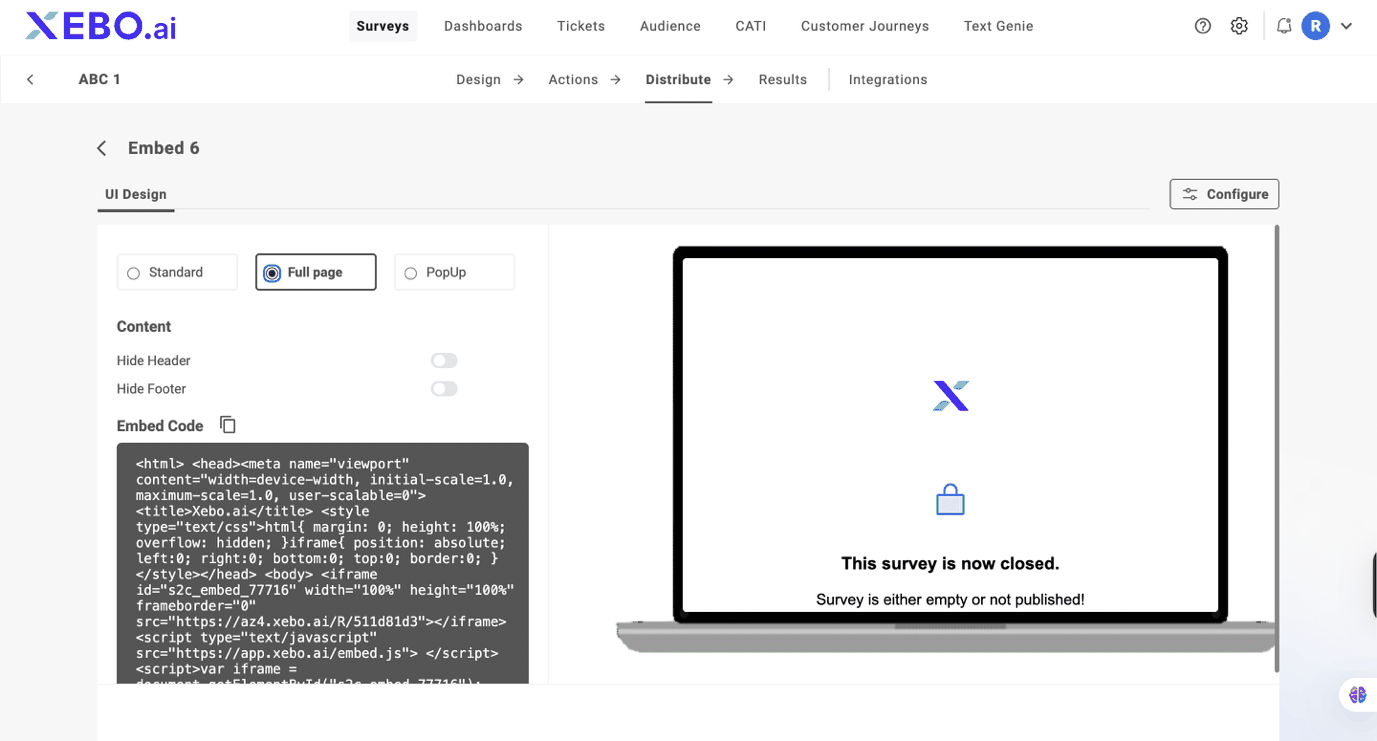

Full Page

Full Page Survey integration is always available with SurveyHub. You can also customize this to make it more suitable for your needs.

Hide Header: This option hides the header of the survey, showing you just the questions.

Hide Footer: This hides the footer of the survey.

Embed Code: This is the code you must integrate with your website to make SurveyHub’s survey available on your platform/website.

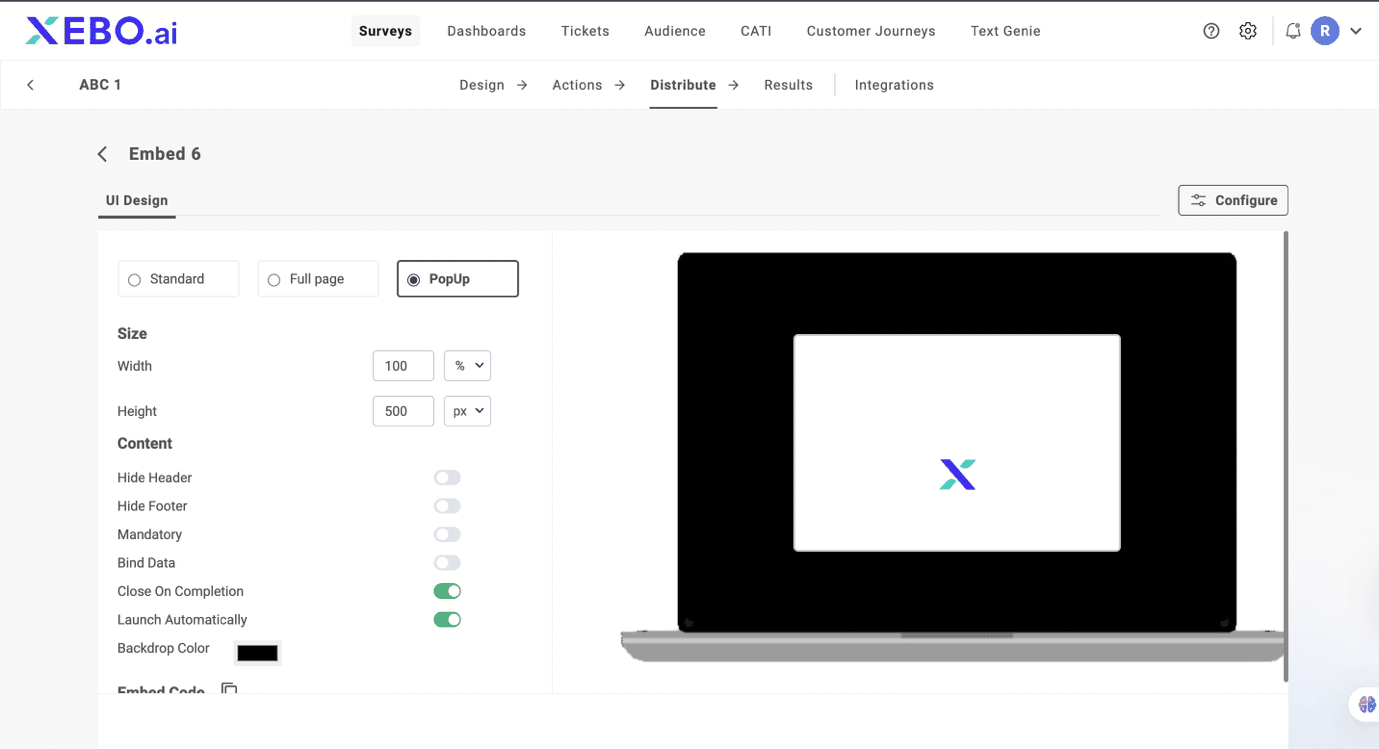

Popup

With this option, the survey appears in a popup box for your respondents. You can customize it to be more intuitive. You have the option to auto-start the survey with popup or you can let the respondents decide when they start with the survey, manually. The customization options available are:

Width: With this option, you can alter the width of the popup survey box.

Height: With this option, you can alter the height of the popup survey box.

Hide Header / Footer: With this option, you can choose to hide the header or footer of the survey, showing just the questions to the respondents.

Mandatory: Enforce survey completion to be mandatory for exiting the popup.

Bind Data: Bind embedded data into survey response.

Close on Completion: This option lets you close the survey automatically to completion. You can enable it or disable it.

Launch Automatically: This option automatically starts the survey for the respondent. If you disable it, you can customize the manual start button.

Backdrop Color: With this option, you can customize the background colour of the textbox.

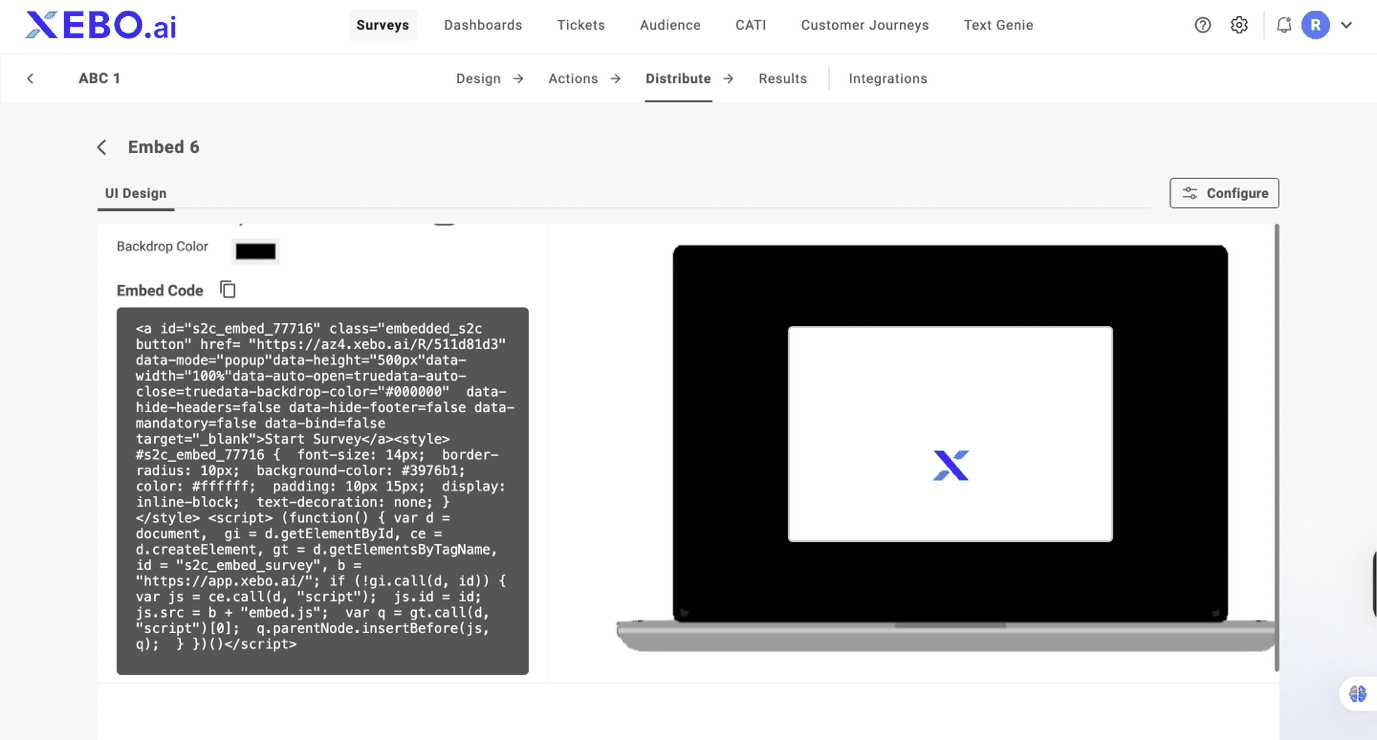

Embed Code: This is the code you need to copy and integrate with your platform to integrate the survey on your platform.
